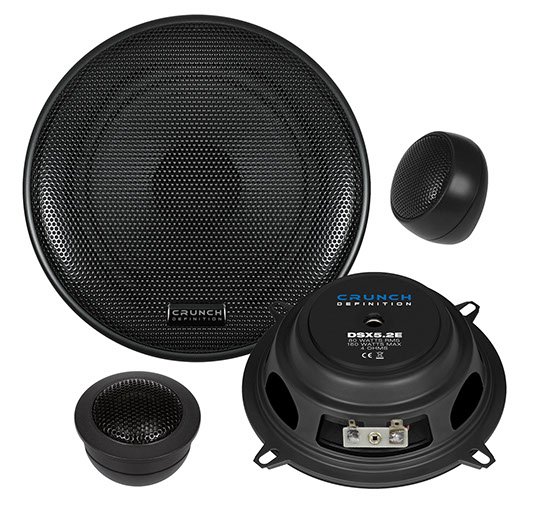

DSX5.2E

13 cm (5.25") Component System

Product Information

The low-profile loudspeakers in the CRUNCH DSX series feature special internal magnet systems. Thanks to this unique design, these ultra-slim, high-performance drivers - equipped with heavy-duty 25 mm voice coils - are the ideal choice for space-saving installations. Their shallow mounting depth makes them particularly suitable for vehicles with limited installation space or for replacing factory-installed sound system speakers.

Features

  • Sturdy Steels Baskets in Flat Design
  • Internal Magnet Driver
  • Polypropylen Cones
  • 25 mm Voice Coils



  • Sturdy Speaker Grilles
  • Swiveling Tweeters
  • Compact Cable Crossovers



Specifications

13 cm (5.25") 2-Way Component System

2 x 130 mm Midbass

4 x 12 dB Cable Crossover

2 x 25 mm ​Silk Dome Neodymium Tweeter

Power Rating 2 x 80 W/RMS

Power Rating 2 x 160 Watt MAX

Impedance 4 Ω

Frequency Range 69 - 22000 Hz

Installation Opening 115 mm

Installation Depth 42 mm

Downloads

Owner's Manual

€ 95,00

Manufacturer's suggested retail price, changes and mistakes reserved.
