Class D Digital 6-Channel Amplifier
With an extremely compact design of just 135 mm wide and 48 mm high, the Crunch GRAVITY GTX series is launching with 10 models. But the real surprise lies in the performance: Crunch extracts massive power of up to 1,500 watts RMS from the ultra-compact heatsinks!
The GTX models owe their impressive performance to the efficient Class D technology used in all variants. Another highlight is the outstanding price-performance ratio. In addition to high performance, the amplifiers offer features that set standards - including a bass remote in all models.
A special design feature is the recessed acrylic panel on the top, in which the red CRUNCH logo and the white model name are stylishly highlighted in two colors.

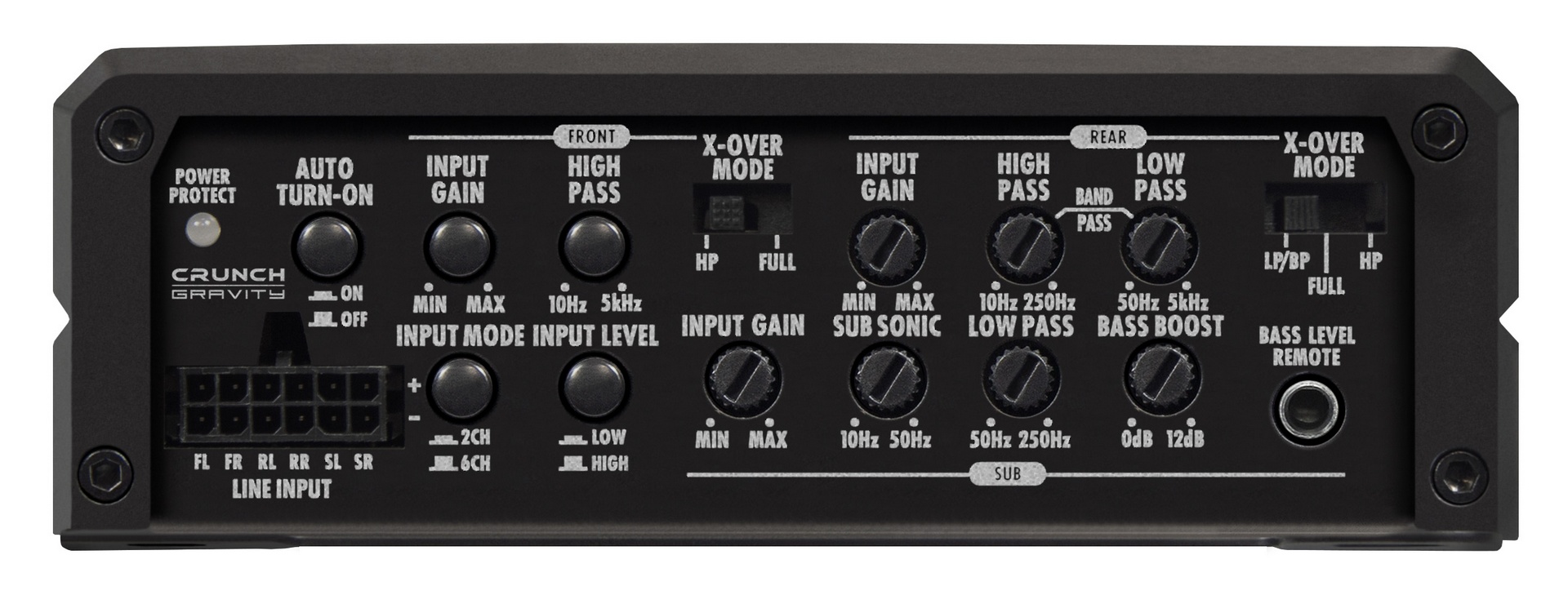

Highpass Filter 10~5000 Hz (FRONT)
Highpass Filter 10~250 Hz (REAR)
Lowpass Filter 50~5000 Hz (REAR)
Bandpass-Modus (REAR)
Lowpass Filter 50~250 Hz (SUB)
Subsonic Filter 10~50 Hz (SUB)
Bass Boost 0~12 dB (SUB)
Input Mode Selector 2CH/6CH
RCA Inputs via Cable Plug
High Level Inputs with EPS®
Auto Turn-OnCompact
Bass Level Remote Controller
2-Color illuminated Logo Panel
High-quality Aluminum Heatsink
6 x 120/220 Watts RMS @ 4/2 Ω
3 x 440 Watts RMS @ 4 Ω bridged
6 x 240/440 Watts MAX @ 4/2 Ω
3 x 880 Watts MAX @ 4 Ω bridged
135 x 48 x 320 mm
