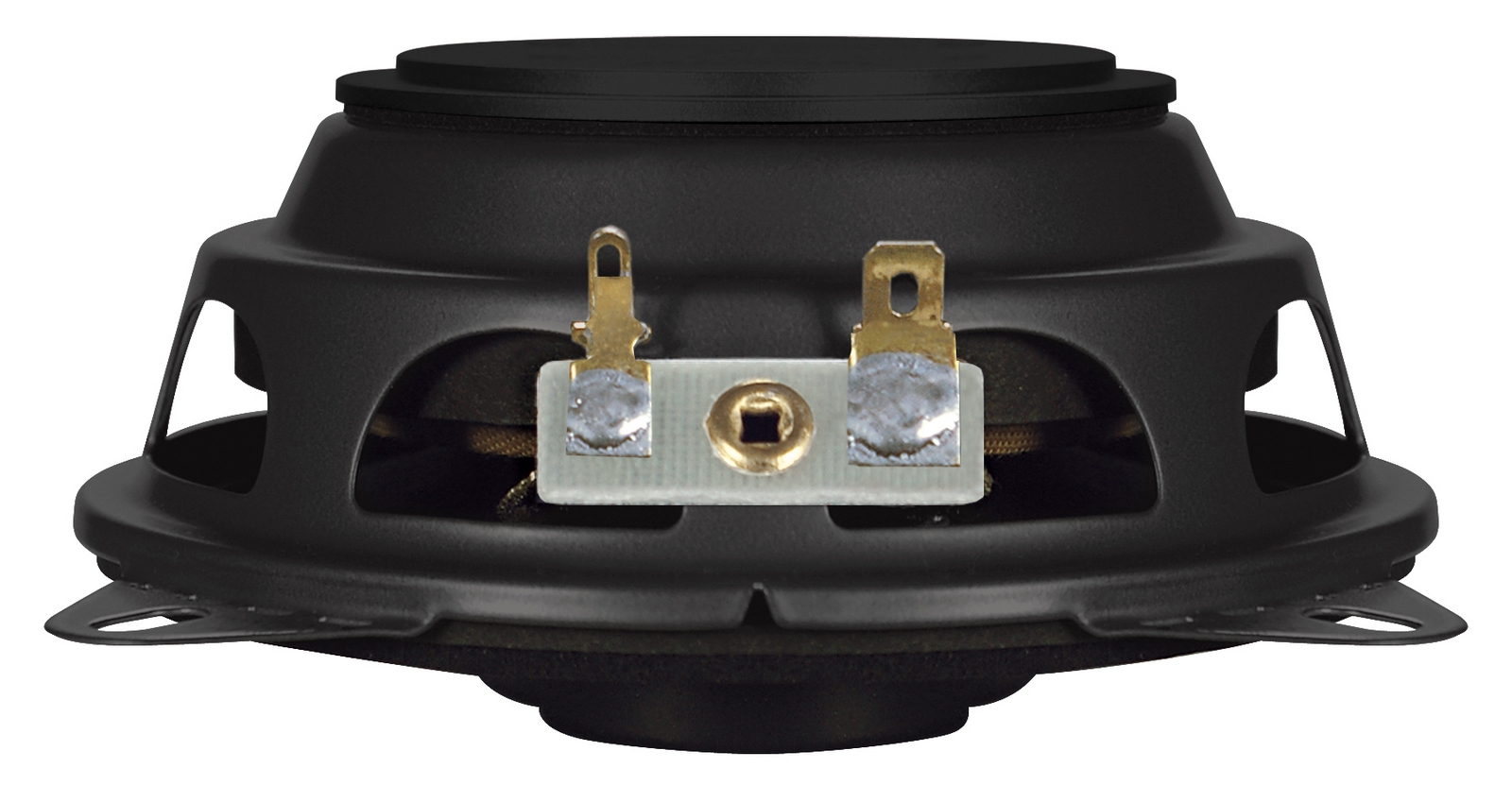

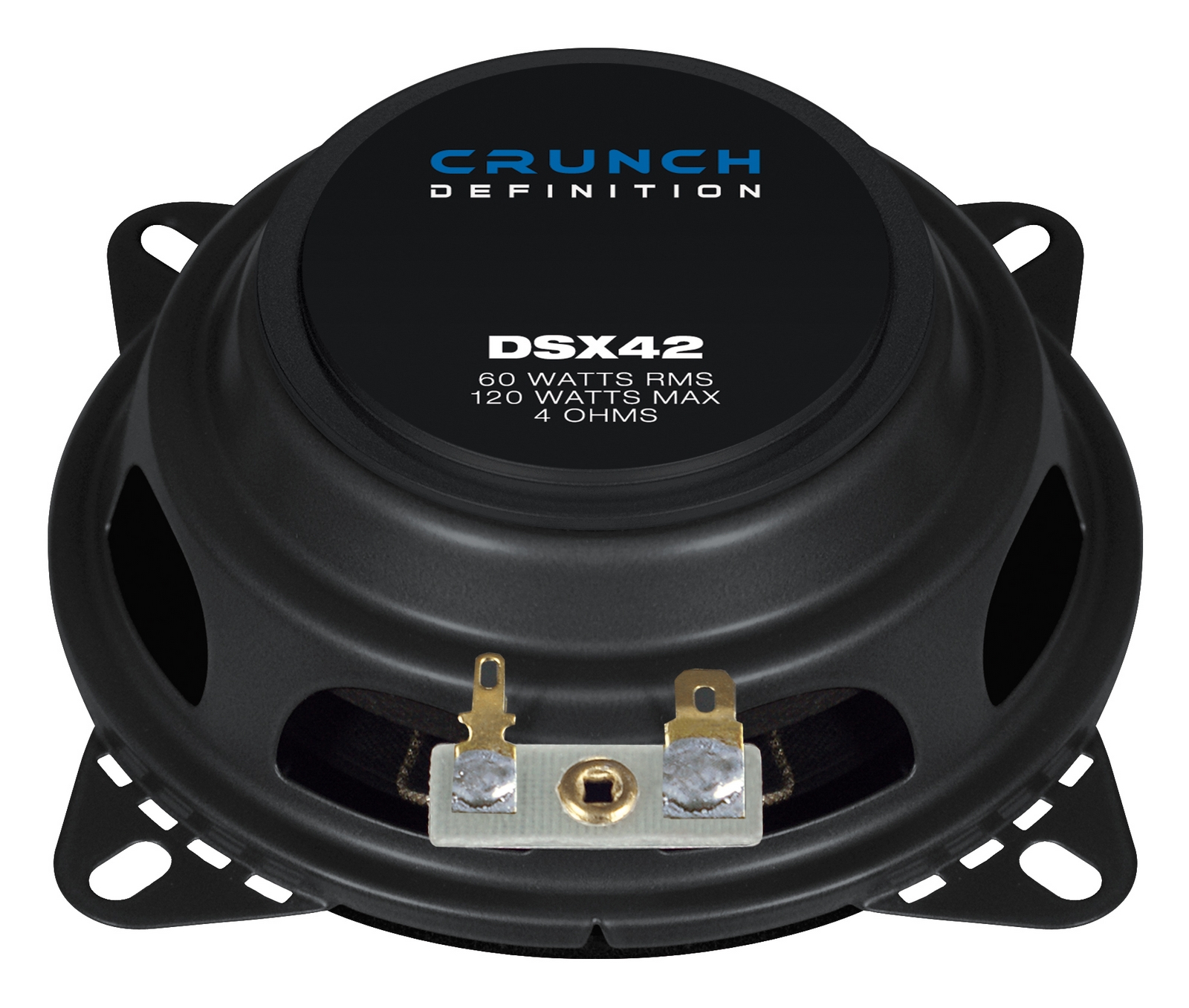

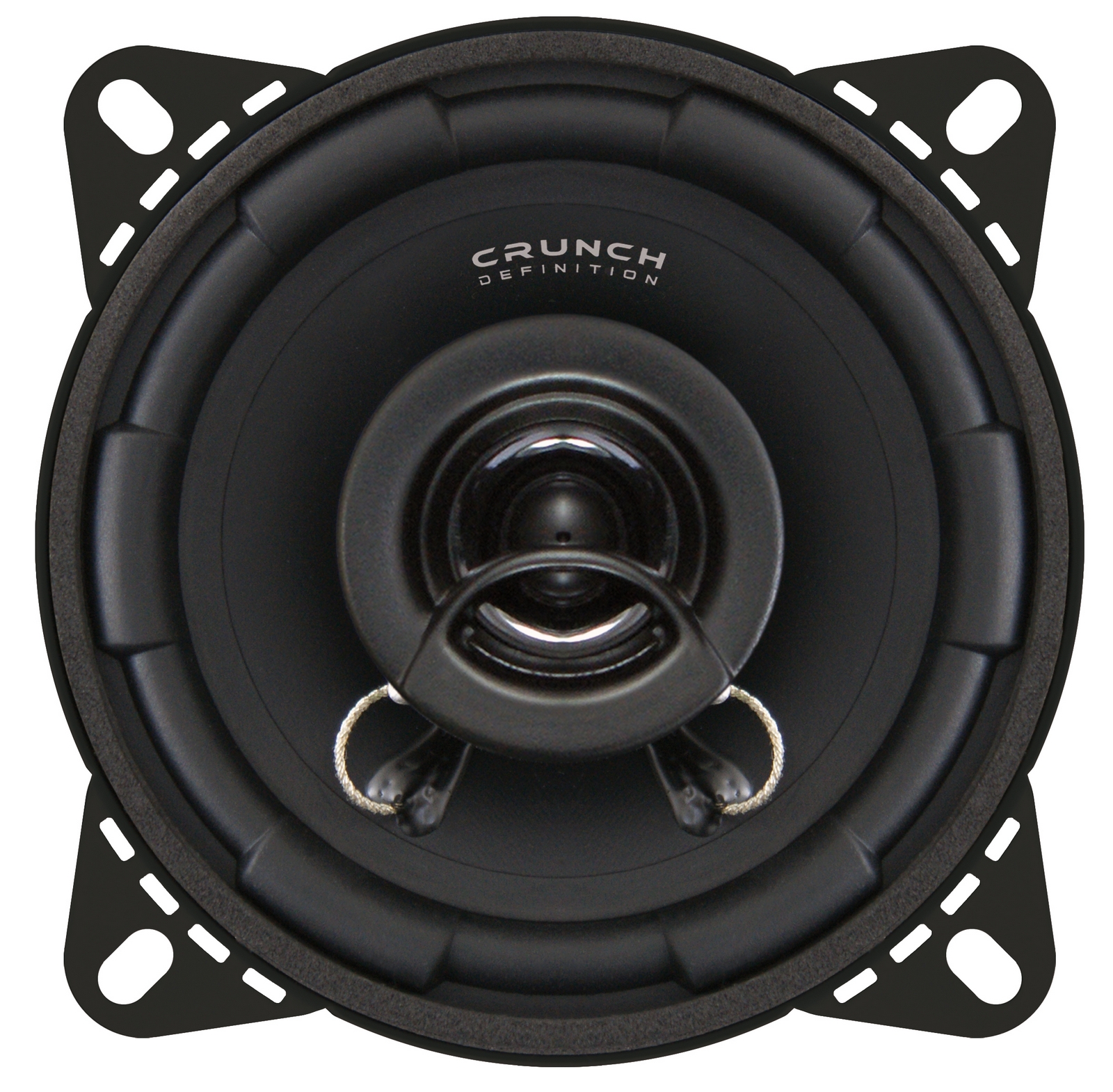

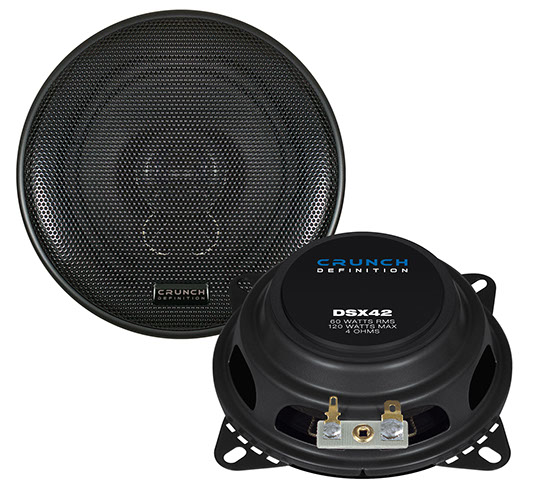

DSX42

10 cm (4") Coaxial Speakers

Information

The loudspeakers of the CRUNCH DSX series in flat design are equipped with special internal magnet systems. Thanks to their special construction, the ultra-flat drivers, which are equipped with heavy-duty 25 mm voice coils and are the first choice for space-saving installations. Due to the low installation depth, they are particularly ideal for those vehicles in which installation space is limited or the loudspeakers of the factory sound system have to be replaced.

Features

Sturdy Steels Baskets in Flat Design
Internal Magnet Driver
Polypropylen Cones
25 mm Voice Coils

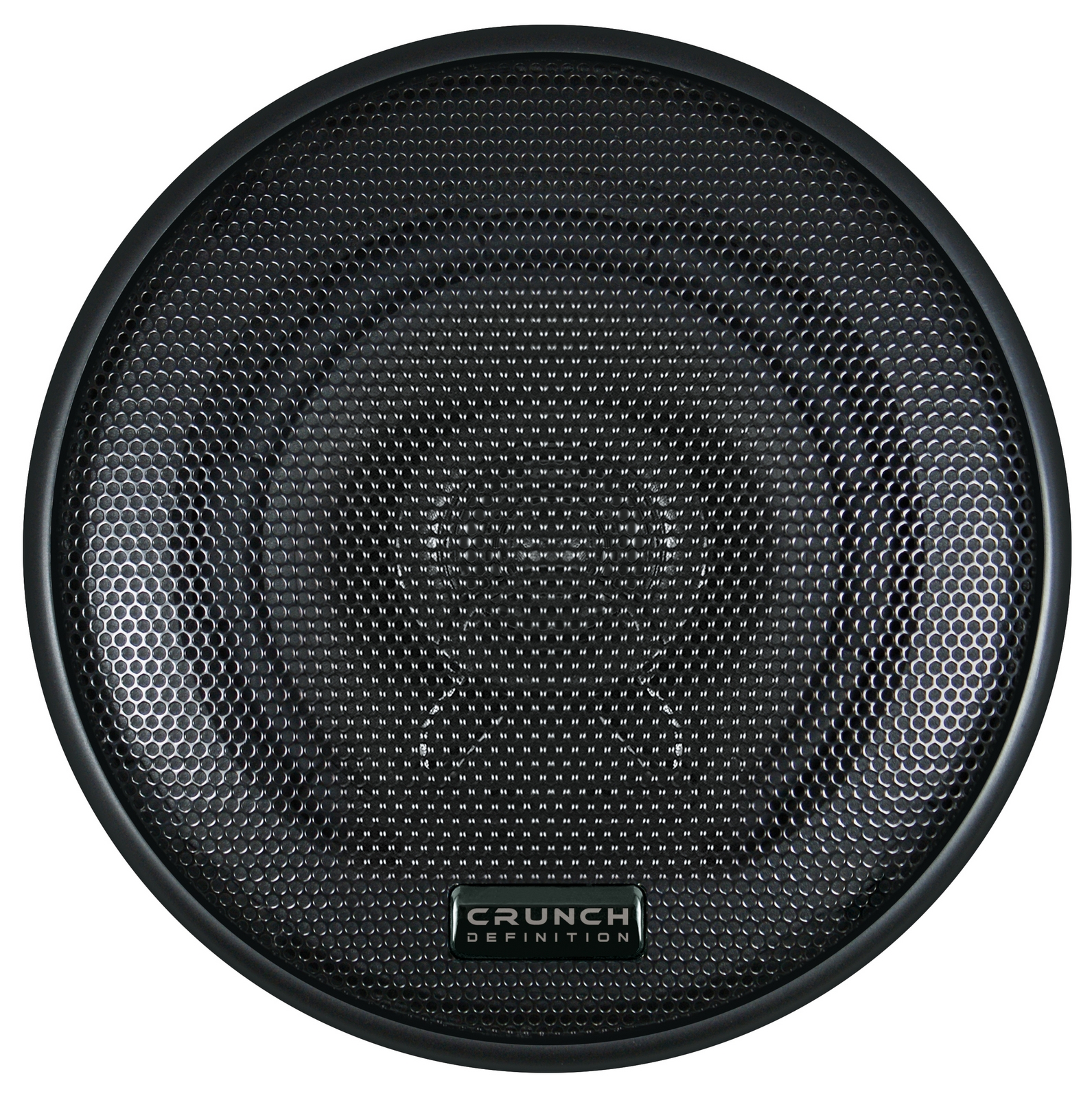

Sturdy Speaker Grilles

Specifications

2 x 100 mm Midbass with
13 mm Mylar Neodymium Tweeter
Power Rating 60 Watts RMS
Power Rating 120 Watts MAX
Impedance 4 Ω
Frequency Range 76 - 22000 Hz
Installation Opening 96 mm
Installation Depth 34 mm

Downloads

Instruction Guide

€ 47,90

Manufacturer's suggested retail price.
Technical changes and mistakes reserved.
