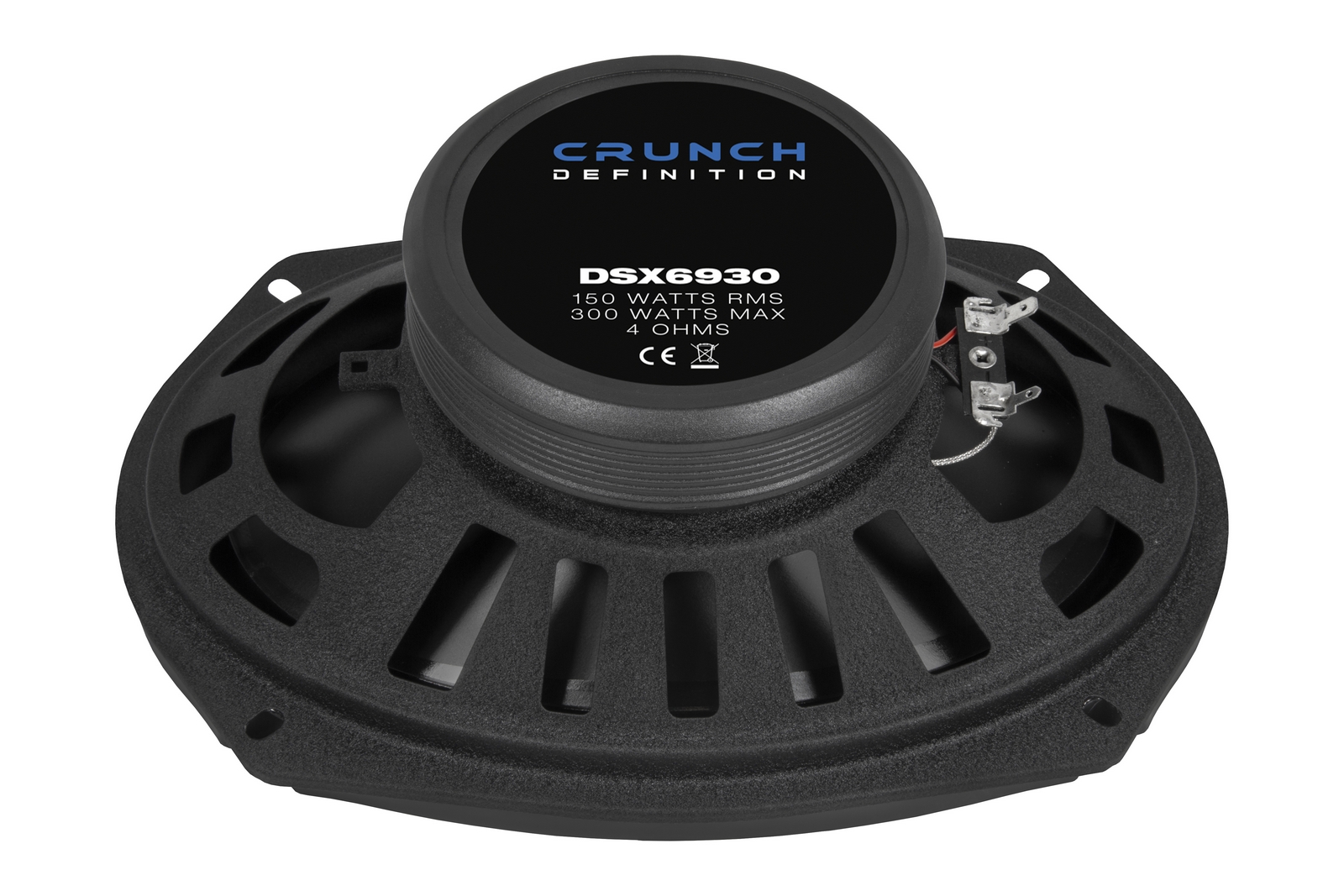

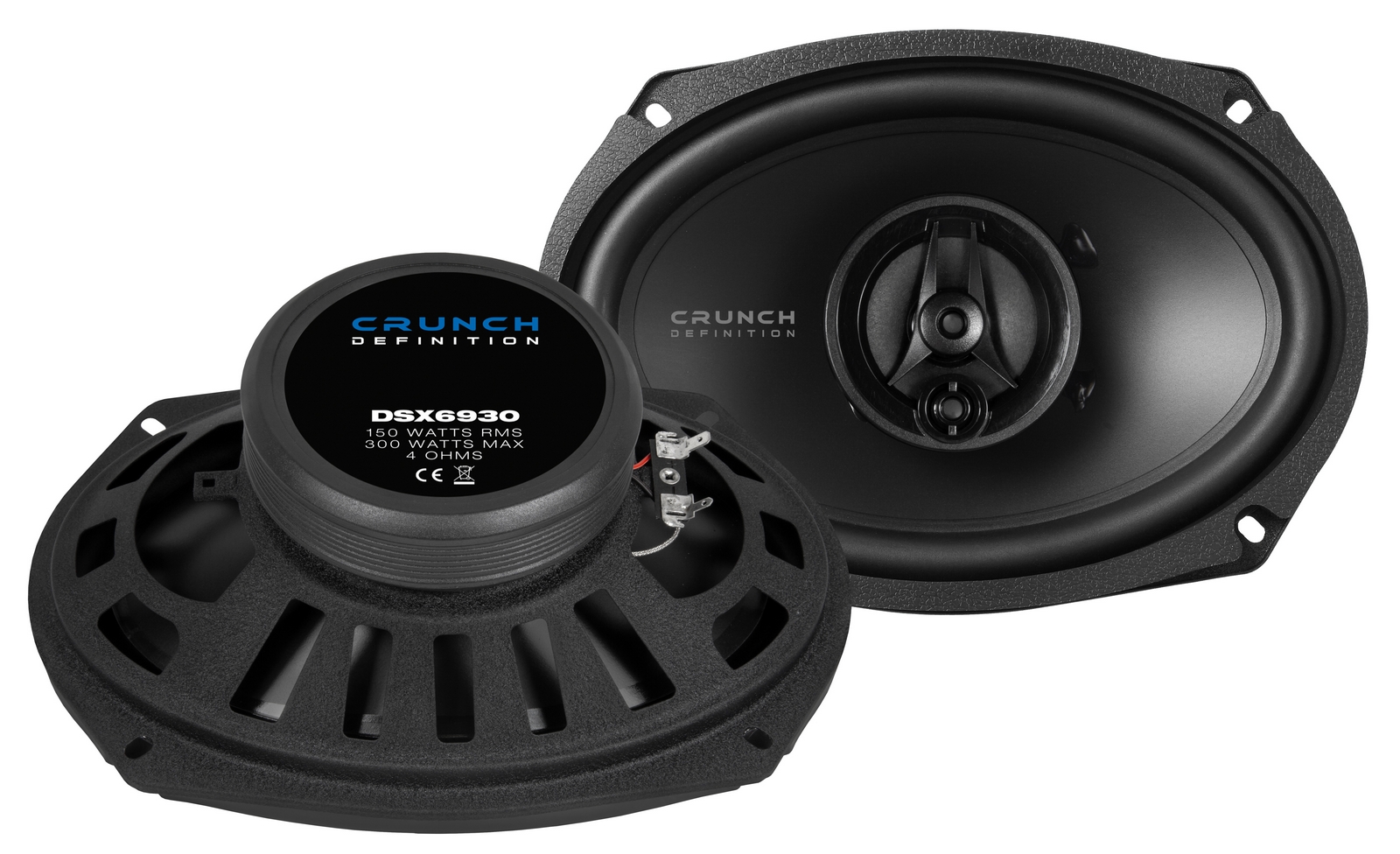

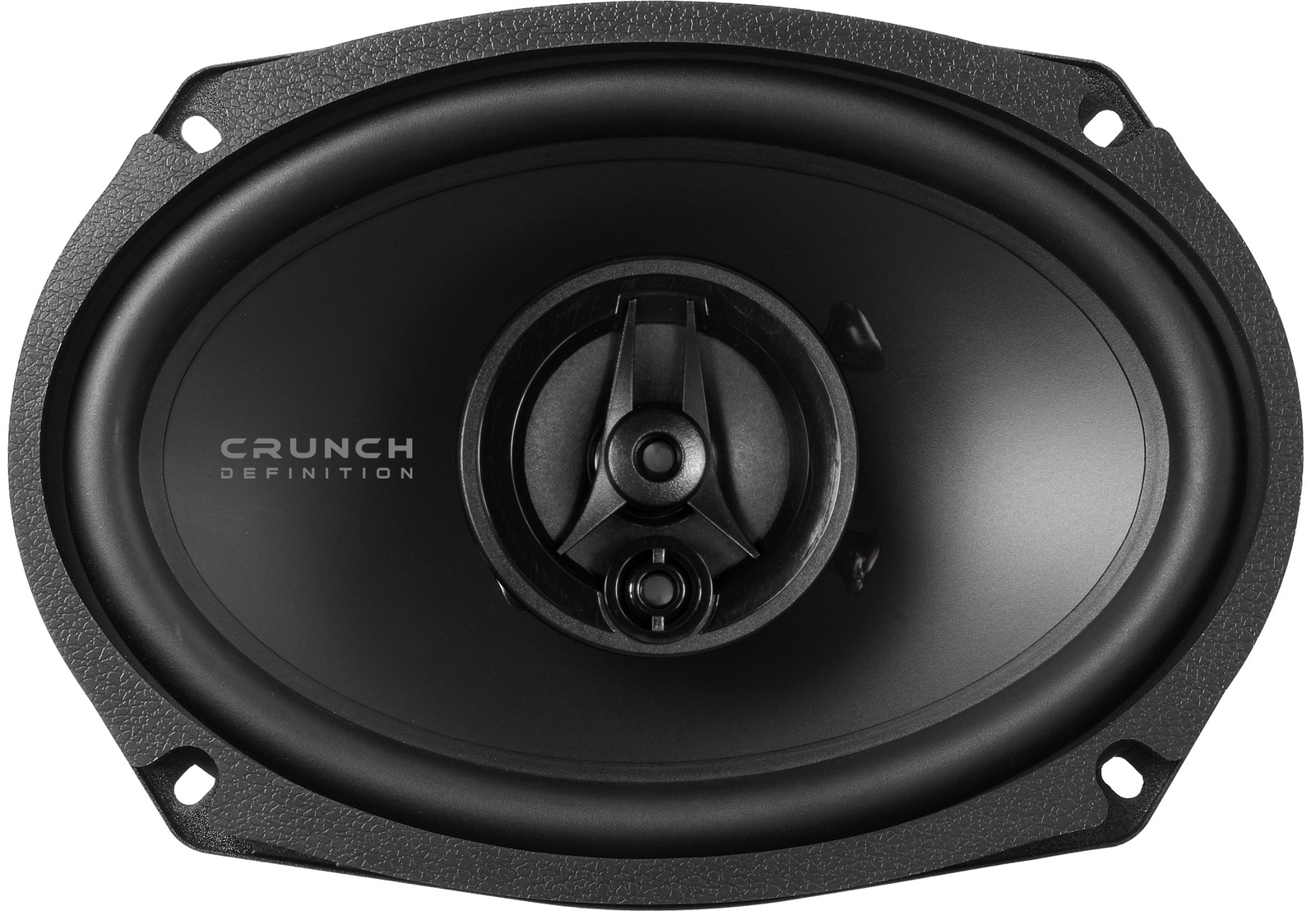

DSX6930

15 x 23 cm (6 x 9") Triaxial Speakers

Information

Many newer and especially older vehicles only have special installation openings for loudspeakers ex works, which, due to the conventional basket sizes, can only be equipped with complex adapter solutions or often not at all. The CRUNCH DSX series offers the perfect solution for these vehicle-specific installation openings. The cleanly tuned and perfectly sounding coax and triax systems are equipped with large ferrite magnet drives and torsion-resistant steel baskets. The solid construction of the loudspeakers guarantees a long-lasting sound experience in the vehicle.

Features

Sturdy Steels Baskets
Polypropylen Cones
Magnet Protectors

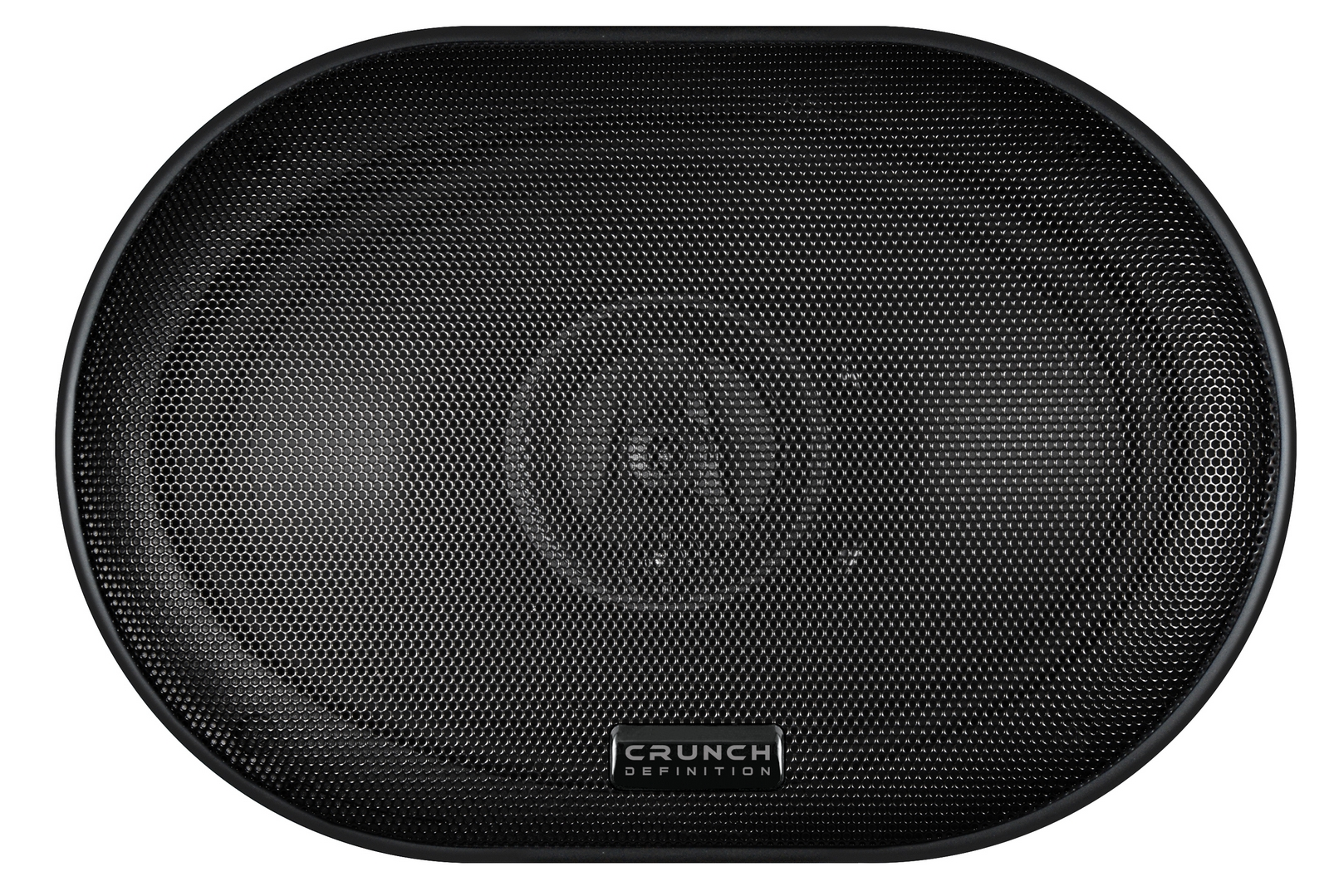

Sturdy Speaker Grilles

Specifications

2 x 150 x 230 mm Midbass with
50 mm Mylar Neodymium Mid Tweeter and
13 mm Mylar Neodymium Tweeter
Power Rating 150 Watts RMS
Power Rating 300 Watts MAX
Impedance 4 Ω
Frequency Range 46 - 22000 Hz
Installation Opening 151 x 220 mm
Installation Depth 75 mm

Downloads

Instruction Guide

€ 69,90

Manufacturer's suggested retail price.
Technical changes and mistakes reserved.
